Toyota Tacoma 2016-19: Diode Dynamics DRL Boards
Computer-designed LED boards for 2016-2019 Toyota Tacoma headlights.
Two high power LEDs in place of each original white chip.
A huge increase in brightness, even in direct sunlight.
Available in Switchback and Amber-only.
Engineered and manufactured in USA.
Two (2) sets of LED boards, left and right
Two (2) waterproof drivers
Two (2) input wire pigtails with T-taps
Quantity: Pair (Left and Right Side)
Warranty: 3 years
Time for an upgrade! From the factory, the Toyota Tacoma has LED accents in the headlight that illuminate in a white color, for the parking light and DRL. Available in switchback and amber-only, Diode Dynamics replacement LED boards add a brighter DRL and additional amber turn signal for a custom, yet functional look. Your order includes two sets of LED boards, one for each side of the vehicle.

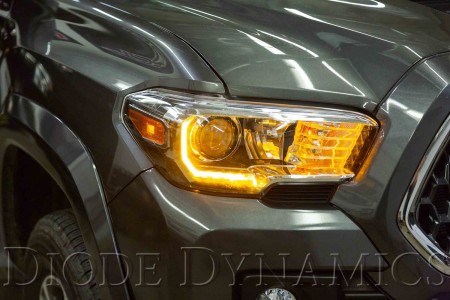

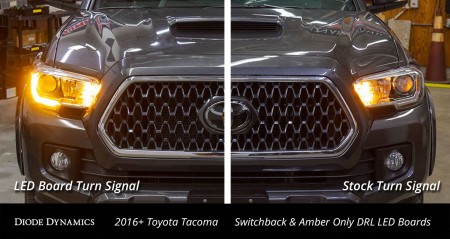

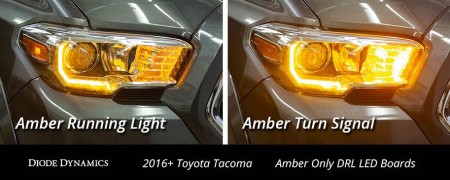

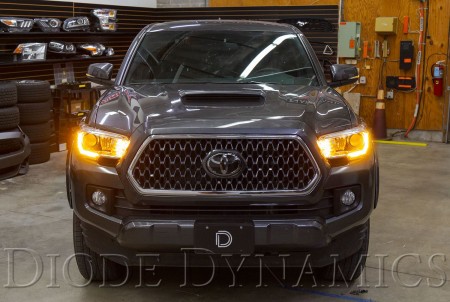

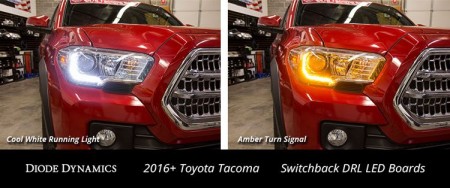

Choose your look. These LED boards are a direct replacement for the factory ones, but have double the number of LEDs. The switchback version illuminates white for your parking lights and DRLs, with a dimmed power level at night. The amber only version illuminates amber for your parking lights and DRLs, with a dimmed power level at night. Anytime you hit your turn signal, both options light up in a brilliant amber that is even brighter to indicate signaling. While the amber is extremely bright, we do not recommend disabling your factory turn signal.
OEM-grade design. At Diode Dynamics, we work directly from OEM data, and use a 3D scanner, to develop precise replacement boards with identical mounting points and shape. Just remove the original boards, and ours will fit directly in place with correct alignment. You’ll also see OEM design features, such as high-intensity automotive emitters, wire connectors, and serial numbers for quality assurance.
Works correctly, with no surprises. In 2014, Diode Dynamics was the first to make replacement circuit boards. Our goal is to make them work just like the factory system – except for added functionality! That means connecting to the factory DRL and running light signals for proper operation. This isn’t as easy as it sounds – on the Toyota Tacoma, all functions are powered through the vehicle’s computer, rather than traditional relays. If the vehicle doesn’t see the power draw it expects, it disables the signal. Many of our competitors skip the factory signals, instructing customers to connect power to the battery, and manually turn the LEDs off and on every time they’re used. Not ideal!
To provide an upgrade without disabling the factory functions, our engineers spent hours in our test garage with a Tacoma in order to tune the drivers correctly. They pull enough power to light up the boards brightly, with the factory functions, but do not cause any errors with the vehicle’s computer. The included instructions show you exactly which wires to connect to, for no guesswork. Everything works perfectly, with no errors: there’s no need to sacrifice factory function with Diode Dynamics products!
Optically correct. Unlike strips or halos, replacement boards work in conjunction with factory optics in your headlight. Since the factory setup uses only one white chip, it can be difficult to align the light properly from both replacement emitters. To save cost, other brands often use low-cost generic chips, which cannot focus light properly. This creates odd appearances, as some sections are brighter than others. Diode Dynamics uses high-intensity automotive emitters to direct light properly to the factory optic, and all designs are tested a number of times with small adjustments to make sure the setup is optimized. Even a 0.1mm change can make a big difference, and Diode Dynamics products are carefully tuned for maximum performance.
Reliable operation. To drive the high-power LEDs safely, a constant-current, waterproof, inductive driver is included for each set. These drivers were designed to last the life of your vehicle, and have been subjected to advanced transient voltage testing. These tests replicate the electrical wear and tear experienced in automotive environments every time your alternator starts and stops, which is what kills less robust electronics over time. The entire kit is also tested for long-term operation from -40 to 185 degrees F, vibration, and corrosion. All of these tests are completed to SAE/DOT standards, just like the factory components.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you’d like to discuss your lighting project!
Measured Lumens: 550
Color Temp (CCT): 1800K
Power (watts): 15
Operating Voltage: 9-16V
Current (amps @ 13.2V): 1.16
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): JST Inline Connectors, T-Tap Inputs
Driver Features: External, Waterproof, Linear Regulated
Driver Dimensions: 2.5″ x 1.38″ x 0.88″
Materials: Aluminum PCB
