Description

Features
Adds SAE-compliant fog lights to the latest Ford Maverick.
OEM-style appearance with included textured bezels.
Vehicle-specific harness provides automatic, factory-style operation.
Sharp, asymmetric beam pattern delivers a 100-degree total spread.
Integrated amber backlight adds a distinctive accent.
Engineered and assembled in the USA.

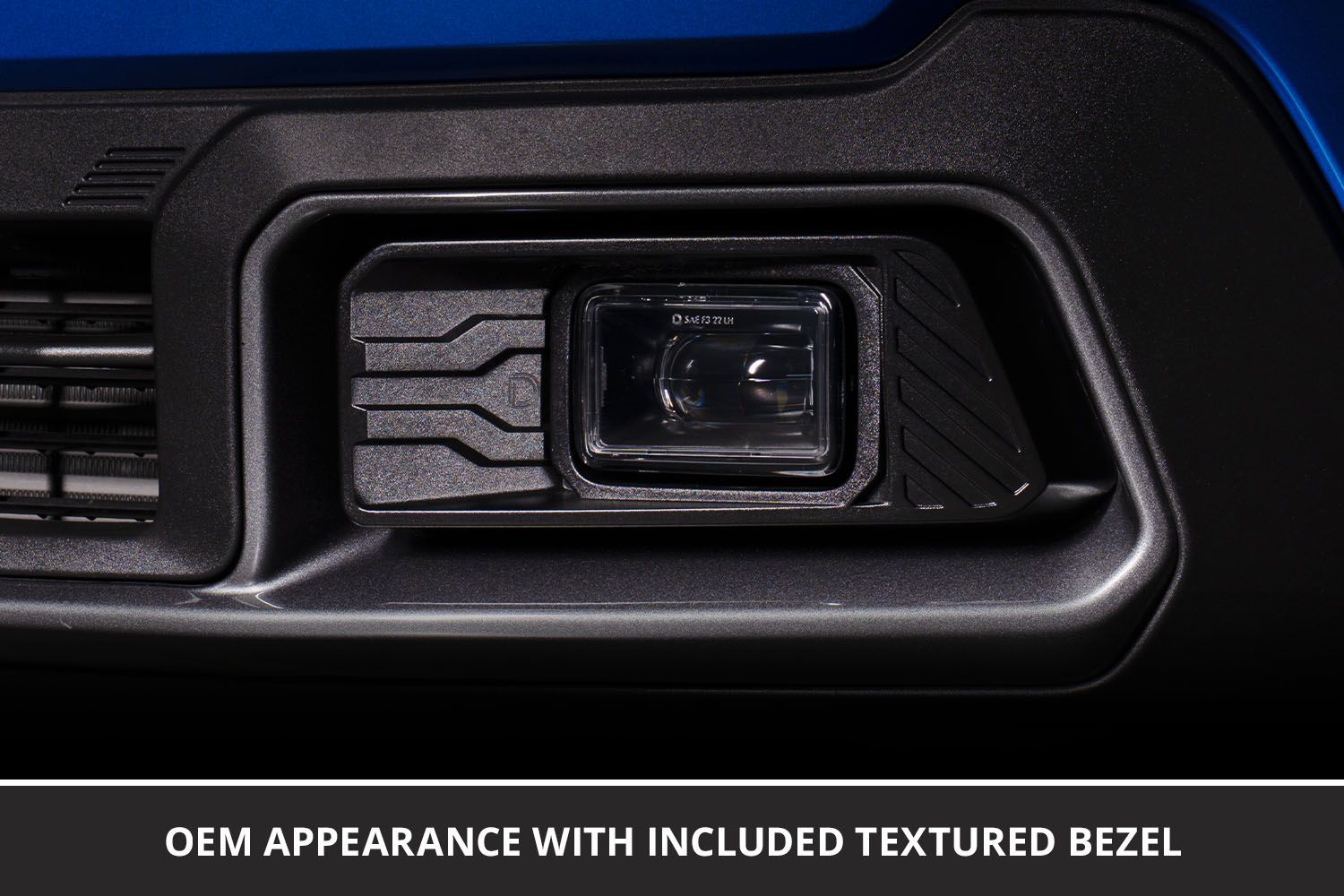

OEM+ Appearance. Designed by our in-house engineering team, the patent-pending bezels follow the shape, texture, and contours of the factory bumper for a clean, integrated finish. They are manufactured from UV-stable ASA plastic for excellent durability and long-term resistance to fading and weathering. Installation requires trimming the factory bumper to create a precise opening for each bezel.

Factory-Style Operation. The included vehicle-specific harness connects directly to the factory headlight and sidemarker wiring, with clearly labeled connections for projector- and reflector-equipped vehicles. Once installed, the fog lamps turn on automatically with the parking lights or low beams and turn off when the high beams are activated. There is no separate switch to route through the firewall, providing convenient operation that functions like a factory-installed lighting system.

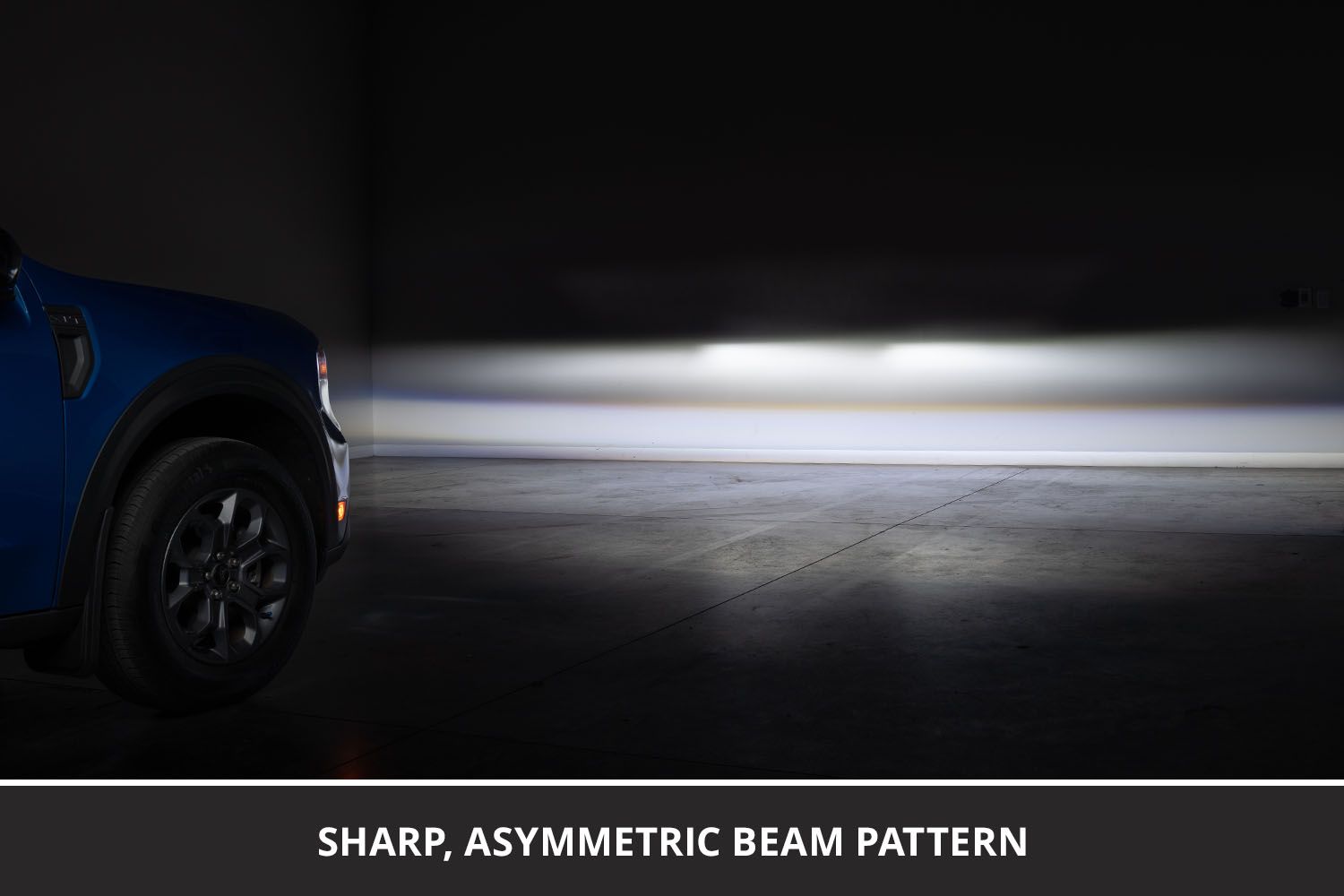

Output That Outperforms. The Elite Series Fog Lamp is built around a highly engineered, single-piece toroidal lens. Developed using advanced optical simulation, this optic produces an exceptionally wide, asymmetric beam pattern with a 100-degree total spread. The output remains smooth and evenly distributed across the entire pattern, with a sharp cutoff that places light where it is needed while minimizing glare for other drivers. The lamps meet SAE F3 fog light standards for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. Elite Series Fog Lamps are available in your choice of cool white or selective yellow output.

The 6000K cool white option provides a clean, modern appearance that coordinates with factory LEDs, DRLs, and other exterior lighting. It also features a premium color band along the upper edge of the beam pattern.

The 3000K selective yellow option increases contrast in rain, fog, dust, and snow while adding a distinctive appearance. A yellow multi-die LED emitter is paired with a yellow-tinted lens to provide intense color without sacrificing optical efficiency.

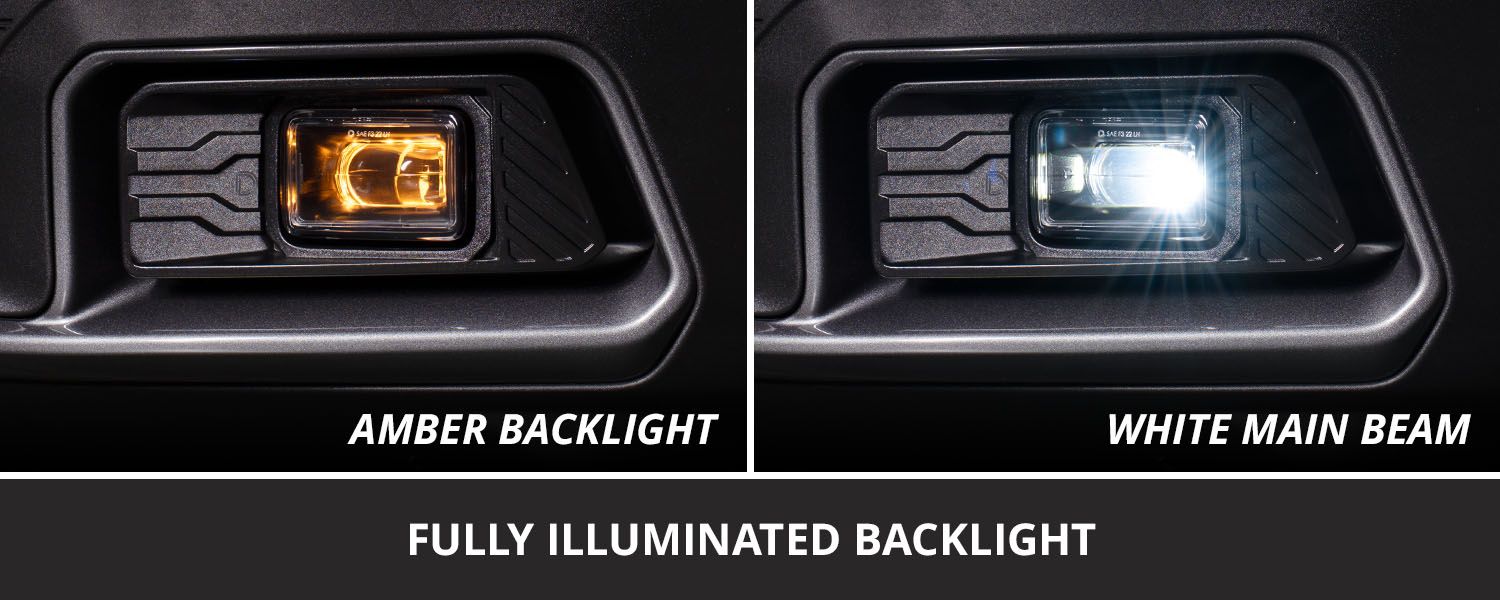

Integrated Amber Backlight. Every Elite Series Fog Lamp includes an amber backlight that fully illuminates the main lens. This accent is designed to complement the Maverick’s factory position and sidemarker lighting for a cohesive appearance. Check local laws and regulations for acceptable use.

Purpose-Built Fitment. Every component, from the lamp brackets and bezels to the vehicle-specific harness, was developed as a complete system for a clean installation and reliable operation and provides built-in adjustment for precise aiming after installation. Click here to learn how to aim your Elite Series Fog Lamps: How to Aim Your Fog Lights.

Assembled with Quality in the USA. Elite Series Fog Lamps are assembled in the USA using OEM-grade materials, including a precision aluminum casting, UV-coated outer lens, copper-core circuit board, and multi-die automotive emitters. After assembly at our St. Louis, Missouri facility, each lamp is robotically sealed with urethane epoxy for long-lasting protection against moisture and packaged in form-fit foam for safe transportation.

Proven Reliability, Backed for 8 Years. Elite Series LED lamps have been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing performed to SAE standards. Integrated moisture-proof vents allow the lamps to manage changes in temperature while maintaining a strong seal over time. Built-in circuit protection guards against voltage spikes and reverse polarity, and every lamp is backed by an industry-leading 8-year limited warranty.

Experience. For more than 20 years, Diode Dynamics has developed high-performance lighting solutions for automotive enthusiasts, beginning in the rally community where dependable lighting is essential. Today, our products are engineered, tested, and assembled by our team in the United States, giving us direct control over performance, quality, and reliability. Whether you are improving everyday visibility or preparing for your next adventure, you can count on Diode Dynamics for purpose-built lighting.

Specifications
Raw Lumens: 1,650 lm, Yellow: 1,900 lm, Backlight: 140 lm
Intensity (cd): White: 11,300 cd, Yellow: 11,000 cd
Color Temp (CCT): 3000K, 6000K
Beam Angle: Fog, 100°x7°
Power (watts): Main Beam White: 16, Main Beam Yellow: 21, Backlight: 2.0
Operating Voltage: 9-16V
Current (amps @ 13.2V): Main Beam White: 1.2, Main Beam Yellow: 1.6, Backlight: 0.15
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: DongFeng DF3E
Connector(s): Deutsch DT Input, 9006
Driver Features: Internal, Constant Current
Materials: Copper PCB, UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575
Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP69K Waterproof, High Pressure
