Description

Features

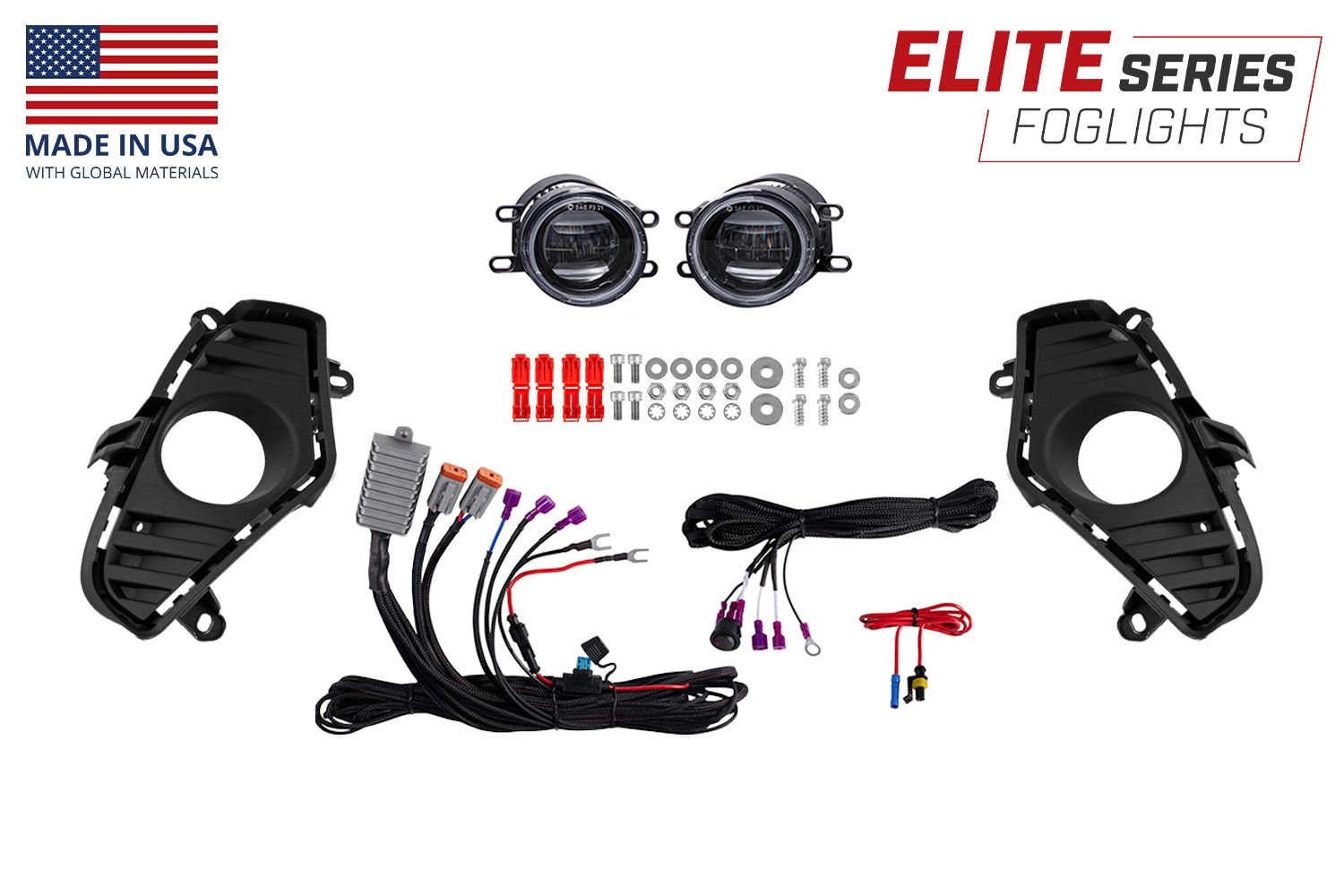

Adds SAE-compliant fog lights to the 2019-2025 Toyota RAV4.
Includes custom bezel, for factory-style appearance and fitment.
Custom harness allows for factory-like operation.
Distinctive integrated amber backlight activates with parking lights.
Made in USA, backed by an 8-year warranty.

OEM-Style Appearance. The included bezels simply snap into place, replacing the OE bezel without cutting or permanent modification. Their shape and finish complement the factory styling, giving your RAV4 a factory-equipped look while adding functional lighting. If you are looking for a more aggressive lighting option, check out our SS3 Add-On LED Fog Lamp Kit!

Factory-like Operation. Unlike other basic harnesses on the market, the Add-On Fog Harness included in this kit allows the fog lights to operate automatically, just like you’d expect from the factory. By using the included custom-designed harness, the backlight will come on with the parking lights, and the main beam will operate just as a factory fog light, turning on with the low beams and turning off with the high beams. This is much more convenient than manually flipping a switch on every time you want to use them!

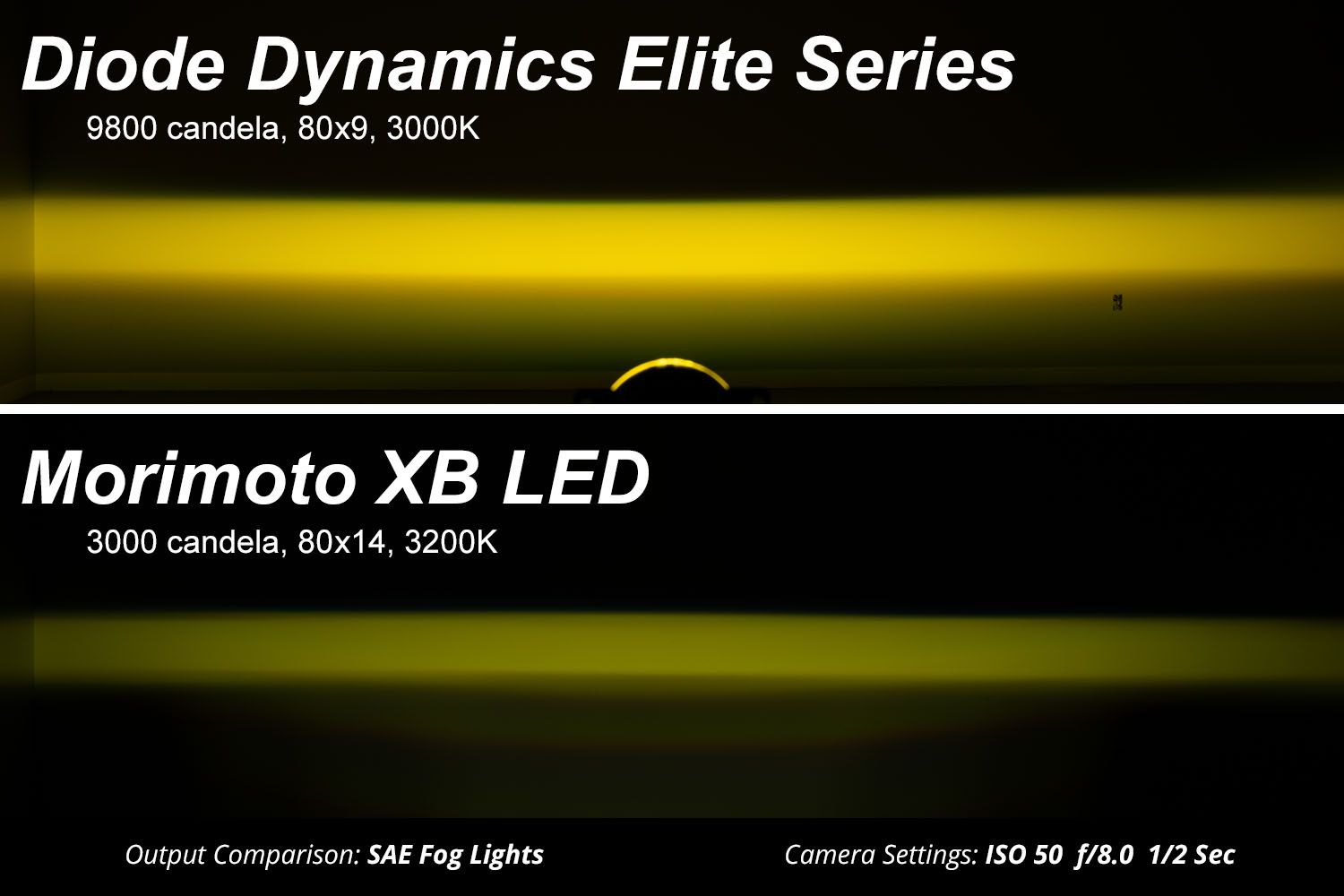

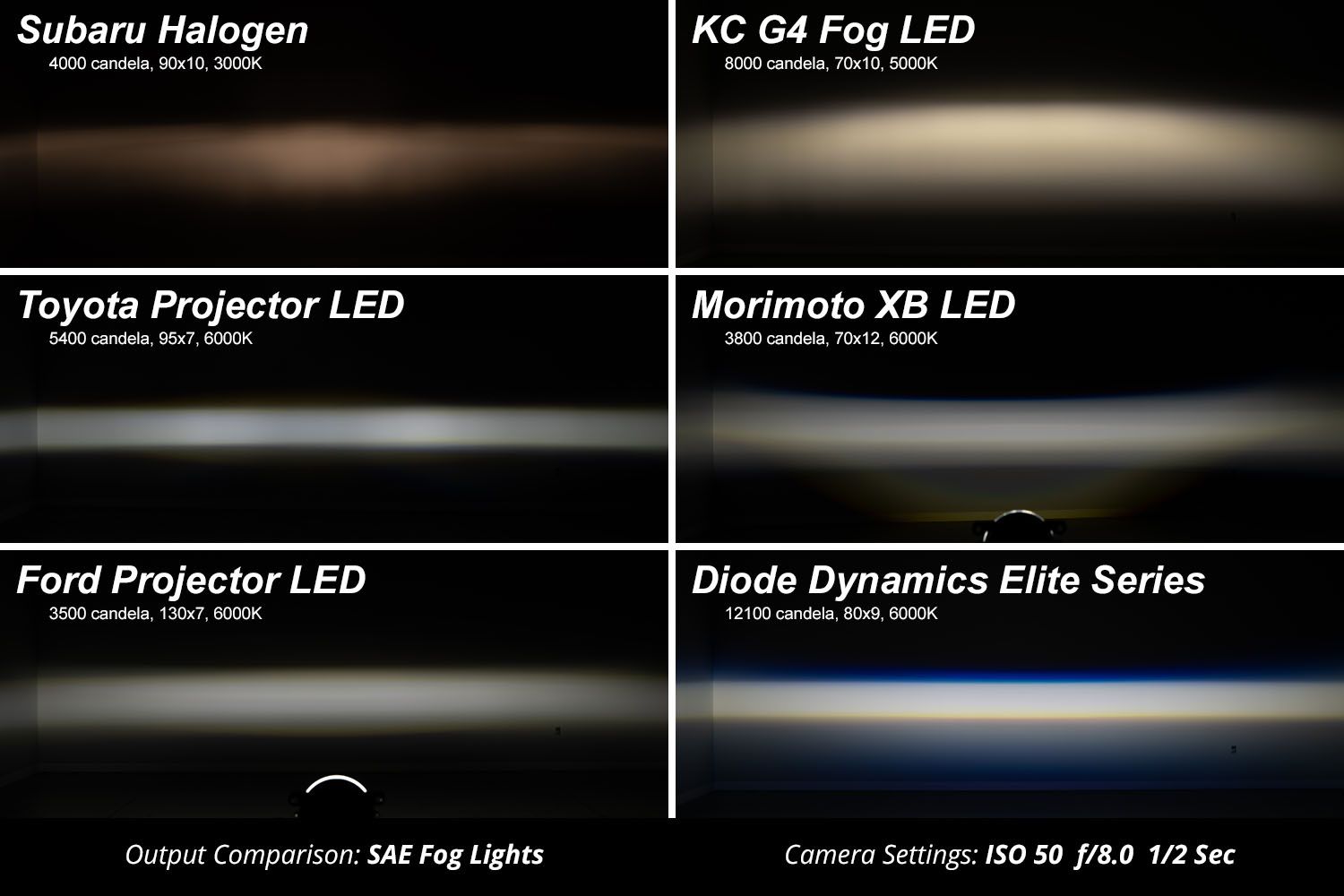

Output that Outperforms. The Elite Series Fog Lamp is built around a highly-engineered single-piece toroidal lens. This optic was carefully designed using advanced optical simulation software to produce an asymmetric light pattern that is wider than any other aftermarket fog lamp on the market, with an 80-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

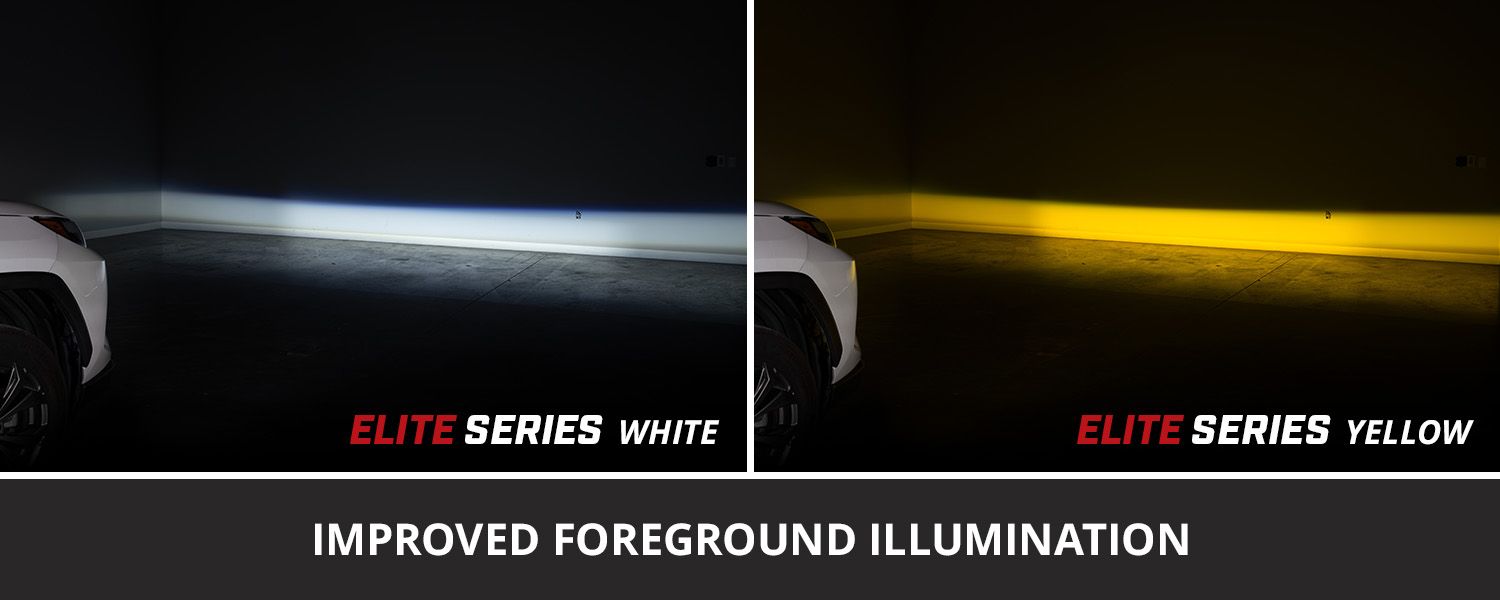

White or Yellow. The Elite Series Fog Lamps in this kit are available in a cool white or selective yellow output color.

The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern.

The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather, or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output.

Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, sidemarker, or corner lights on your vehicle. Check local laws and regulations for acceptable use.

Bolt-On Fitment. The brackets included with the lamps bolt directly to the back of the provided bezels, while our add-on foglight wiring harness is included to connect the fog lights to your factory lighting functions. Click here to learn how to aim your Elite Series Foglamps: How to Aim Your Fog Lights.

Assembled with Quality – in the USA. Elite Series Fog Lamps are assembled in the USA using OEM-grade materials, including a precision aluminum casting, UV-coated outer lens, copper-core circuit board, and multi-die automotive emitters. After being assembled by Diode Dynamics in St. Louis, Missouri, they are robotically sealed with urethane epoxy for long-lasting protection against moisture, and packaged in form-fit foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.

Proven Reliability – Backed for 8 Years. Like our popular Stage Series lineup, Elite Series LED lamps have been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components on your vehicle. With integrated moisture-proof vents, the lamps can “breath” with changes in temperature, maintaining a strong seal over time. And with built-in circuit protection for voltage spikes and reverse polarity, these lights will keep working for years. They are backed by an industry-leading 8-year limited warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you’re driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you’d like to discuss your lighting project!

Specifications
Raw Lumens: White: 1,850 lm, Yellow: 1,650 lm, Backlight: 14 lm
Intensity (cd): White: 10,200 cd, Yellow: 8,700 cd
Color Temp (CCT): 3000K, 6000K Beam Angle: Fog, 80°x6°
Power (watts): Main Beam White: 17, Main Beam Yellow: 15, Backlight: 0.3
Operating Voltage: 9-16V
Current (amps @ 13.2V): Main Beam White: 1.3, Main Beam Yellow: 1.2, Backlight: 0.025
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Multi-Die Automotive Emitters
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP68 Waterproof
